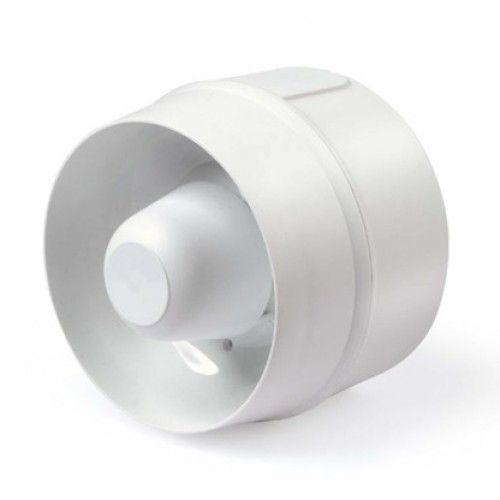

Cranford Controls Fire Alarm Sounder VPR-SA4E-W 24V Wall Mounted - White

Product Specification Fire Alarm Sounder VPR-SA4E-W:-
Colour : White
Output @ 1 metre 24Vdc : 103dBa
Current @ 24Vdc : c. 11mA
Voltage Range : 8 - 35Vdc
Operating Frequency : 800Hz to 1000Hz
Number of Tones : 4
Volume Control : -30dBa
IP Rating : IP65
Temperature Range : -20°C to + 70°C
Weight (per unit packed) : 200g
The VPR-SA4E-W Fire Alarm Sounder is designed for applications where low current consumption relative to sound output is required, with a 103 dBa output requiring only 11mA at 24Vdc.

This Fire Alarm Sounder is specifically designed to be used on conventional fire alarm sounder circuits.  It is compatible with the majority of modern conventional fire alarm system control panels.  This Fire Alarm Sounder is white in colour and matches the colour of most modern fire alarm sounders.

With an operating frequency of 800Hz - 1000Hz, each sounder provides sound within the frequency range specified by BS5839. Each Fire Alarm Sounder also has a wide operating voltage of 8 - 35Vdc.  The tones on the VPR-SA2-W Fire Alarm Sounder are available by selecting either warble, sweep or pips via the jumper fitted to the PCB. By using three wires, a second stage alarm may be switched so that the continuous tone will override the tone selected.
